Network-based analysis of vaccine-related associations reveals consistent knowledge with the vaccine ontology
© Zhang et al.; licensee BioMed Central Ltd. 2013
- Received: 15 August 2013
- Accepted: 4 November 2013
- Published: 11 November 2013
Ontologies are useful in many branches of biomedical research. For instance, in the vaccine domain, the community-based Vaccine Ontology (VO) has been widely used to promote vaccine data standardization, integration, and computer-assisted reasoning. However, a major challenge in the VO has been to construct ontologies of vaccine functions, given incomplete vaccine knowledge and inconsistencies in how this knowledge is manually curated.
In this study, we show that network-based analysis of vaccine-related networks can identify underlying structural information consistent with that captured by the VO, and commonalities in the vaccine adverse events for vaccines and for diseases to produce new hypotheses about pathomechanisms involving the vaccine and the disease status. First, a vaccine-vaccine network was inferred by applying a bipartite network projection strategy to the vaccine-disease network extracted from the Semantic MEDLINE database. In total, 76 vaccines and 573 relationships were identified to construct the vaccine network. The shortest paths between all pairs of vaccines were calculated within the vaccine network. The correlation between the shortest paths of vaccine pairs and their semantic similarities in the VO was then investigated. Second, a vaccine-gene network was also constructed. In this network, 4 genes were identified as hubs interacting with at least 3 vaccines, and 4 vaccines were identified as hubs associated with at least 3 genes. These findings correlate with existing knowledge and provide new hypotheses in the fundamental interaction mechanisms involving vaccines, diseases, and genes.
In this study, we demonstrated that a combinatorial analysis using a literature knowledgebase, semantic technology, and ontology is able to reveal important unidentified knowledge critical to biomedical research and public health and to generate testable hypotheses for future experimental verification. As the associations from Semantic MEDLINE remain incomplete, we expect to extend this work by (1) integrating additional association databases to complement Semantic MEDLINE knowledge, (2) extending the neighbor genes of vaccine-associated genes, and (3) assigning confidence weights to different types of associations or associations from different sources.
- Resource Description Framework
- Pertussis Vaccine
- Unify Medical Language System
- Bipartite Network
- Vaccine Adverse Event Reporting System
Vaccines have been one of the most successful public health interventions to date, with most vaccine-preventable diseases having declined in the United States by 95% to 99% . However, vaccine development has become more difficult as more complex organisms become vaccine targets. In recent years, drug repositioning has increased rapidly and achieved a number of successes for existing drugs, such as sildenafil  and thalidomide . By definition, drug repositioning is the “process of finding new uses outside the scope of the original medical indications for existing drugs or compounds” . In 2009, more than 30% of 51 new medicines and vaccines were developed on the basis of previously marketed products. This suggests that drug repositioning has drawn great attention from both industry and academic institutions . However, many drug repositioning examples were based on serendipitous discoveries  or on observable clinical phenotypes, without systematic identification of new targets. Recent research has shown that bioinformatics-based approaches can aid in repositioning drugs based on the complex relationships among drugs, diseases, and genes .
In recent years, high-throughput biological data and computational systems biology approaches have provided an unprecedented opportunity to understand disease etiology and its underlying cellular subsystems. Biological knowledge, such as drug-disease networks and biomedical ontologies, have accelerated the development of network-based approaches to understanding disease etiologies [8, 9] and drug actions (network pharmacology) [10, 11]. Such approaches could also be applied to vaccine research, aiming to investigate vaccine-related associations derived from public knowledgebases, such as PubMed. For example, Vaccine Ontology (VO)–based literature mining research last year studied all potential gene interactions associated with fever alone or both fever and vaccine . This study focused on the retrieval of gene-gene associations identified on the basis of their direct interactions in the context of fever and vaccine. The centrality-based network approach  evaluated the level of importance for each gene in the extracted gene interaction network. Novel gene interactions were identified to be essential in fever- or vaccine-related networks that could not be found before. A similar VO and centrality-based literature mining approach was used to analyze a vaccine-associated interferon γ gene interaction network .
Ball et al.  compiled a network consisting of 6,428 nodes (74 vaccines and 6,354 adverse events) and more than 1.4 million interlinkages, derived from the Vaccine Adverse Event Reporting System. This network demonstrated a scale-free property, in which certain vaccines and adverse events acted as “hubs.” Such network analysis approaches complement current statistical techniques by offering a novel way to visualize and evaluate vaccine adverse event data. However, the relationships among different vaccines in the context of vaccine-vaccine and vaccine-gene networks have not been well studied. A systematic investigation of such relationships will improve understanding of how vaccines are related to each other and whether such information can complement existing knowledge, such as the VO, therefore providing possible directions for future drug-repositioning.
To analyze the possible commonly shared protective immunity or adverse event mechanisms among different vaccines, it is critical to study all possible vaccine-vaccine and vaccine-gene associations using network analysis approaches. The hypotheses behind this are 2-fold: (1) if 2 vaccines have a coupling relationship with common disease(s) or gene(s), they are linked in the vaccine network; and (2) the closer 2 vaccines are in the vaccine network, the more similar they are in the context of a literature knowledgebase, such as Semantic MEDLINE . In this study, we proposed a network-based approach to investigate the underlying relationships among vaccines in the context of the vaccine-related network derived from Semantic MEDLINE. The distances of the vaccines were further compared with their semantic similarities in the VO. The results demonstrated that the structure information in the vaccine network is consistent with that captured by the VO. Such network-based analysis can serve as an independent data resource to construct and evaluate biomedical ontologies. In addition, the vaccine-gene network was constructed also on the basis of Semantic MEDLINE information, in which important vaccine-related genes were identified and investigated by the VO and related independent resources. Both analyses demonstrated the potential to serve as the basis for future drug discovery and repositioning. The results of this study will establish associations that may kindle hypothesis generation about drug repositioning.
The rest of the paper is organized as follows. Section 2 introduces the data resources and the proposed network-based framework. Section 3 illustrates the results generated from each step in the proposed computational framework. Section 4 provides a thorough discussion of the results and concludes the paper.
Data sources and preprocessing
In this study, we used Semantic MEDLINE as the data resource to build the networks. Semantic MEDLINE  is a National Library of Medicine–initiated project, which provides a publicly available database that contains comprehensive resources, with structured annotations for information extracted from more than 19 million MEDLINE abstracts. Since Semantic MEDLINE is a comprehensive resource that contains heterogeneous data with different features extracted, our previous research has reorganized this data source and optimized it for informatics analysis . Using the Unified Medical Language System semantic types and groups , we extracted unique associations among diseases, genes, and drugs and represented them in 6 Resource Description Framework (RDF) graphs. In this study, we used our optimized Semantic MEDLINE RDF data as the data source to perform network analysis for vaccine-related networks.
Our RDF-based Semantic MEDLINE resource currently contains 843,000 disease-disease, 111,000 disease-gene, 1,277,000 disease-drug, 248,000 drug-gene, 1,900,000 drug-drug, and 49,000 gene-gene associations. Since this resource contains high-level terms (eg, gene, protein, disease) that are not useful for network analysis, we manually filtered out these terms. For disease terms, we used only those terms that are included in International Classification of Diseases, Ninth Revision (ICD 9). For gene terms, we included only those terms that have an Entrez Gene ID.
We identified the associations relevant to vaccines only. Specifically, vaccine terms were identified on the basis of Systematized Nomenclature of Medicine–Clinical Terms (SNOMED CT) (http://www.ihtsdo.org/snomed-ct). All the terms under the SNOMED CT term Vaccine (CUI: C0042210) were first extracted. Manual review by 3 experts further removed common terms (eg, bacteria, vaccine) and animal vaccine terms.
Network analysis of vaccine network
Projection of bipartite vaccine-disease network
In graph theory, a bipartite network is composed of 2 non-overlapping sets of nodes and links that connect 1 node in the first node set with 1 node in the second node set. The properties of bipartite networks are often investigated by considering the 1-mode projection of the bipartite network. The 1-mode projection network can be created by connecting 2 nodes in the same node set if they have at least 1 common neighboring node in the other node set. For instance, the vaccine-disease association network is 1 bipartite network: vaccines and diseases constitute 2 node sets, and links are generated between vaccine and disease if they are associated in the Semantic MEDLINE. Therefore, the vaccine-vaccine network can be investigated by projecting vaccine-disease associations to vaccine-vaccine associations, in which 2 vaccines are connected if they are associated with at least 1 same disease. In this work, all links were generated on the basis of associations extracted from Semantic MEDLINE as described in the preceding section, “Data Sources and Preprocessing.” A vaccine-vaccine network was generated consisting of all the links identified in vaccine-disease associations.
Network distance between vaccines
The distance between any two vaccines in the vaccine network was calculated as the length of the shortest path between them . The hierarchical clustering analysis was performed on the distance matrix of all vaccines . Compared to other clustering methods (e.g., k-mean clustering), hhierarchical clustering doesn’t need specify the number of clusters in advance, generates small clusters that are more biologically meaningful, and produces a bottom-up hierarchical structure that is indicative of similarities among variables.

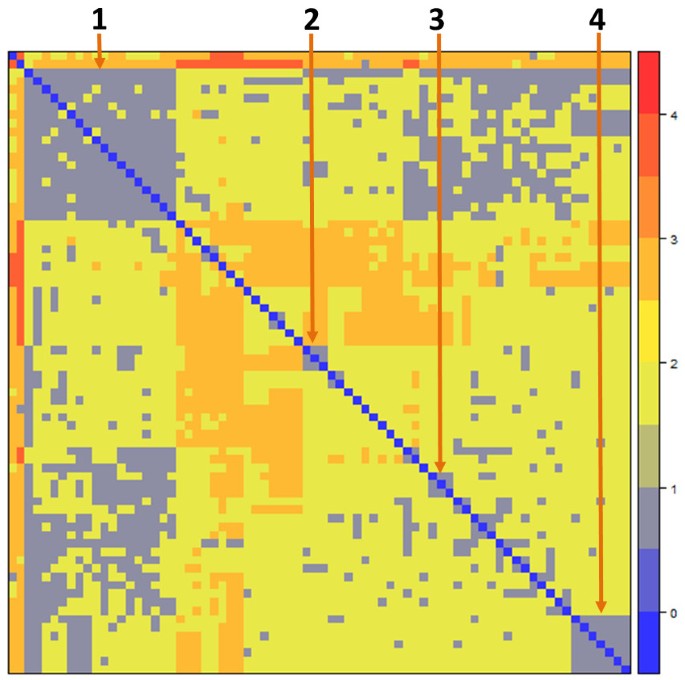

A heatmap is an effective way to visually display multivariate data, which combines the use of color to distinguish the magnitude of measurements and dendrograms to show clustering of variables . Heatmaps are often used for gene expression data to identify the similairty among genes or samples. In this study, we used heatmaps to investigate the hierarchical associations among vaccine terms.
Analysis of vaccine-gene network
The vaccine-gene network was constructed by vaccine-gene associations extracted from the drug-gene associations in our RDF-based data resource. The important vaccine-related genes were identified by their significant higher node degree compared with other vaccines or genes in the same network. The Cytoscape tool  was used to visualize the network. Cytoscape is an open-source platform for integration, visualization, and analysis of biological networks. Its functionalities can be extended through Cytoscape plugins. Scientists from different research fields have contributed more than 160 useful plugins so far. These comprehensive features allow us to perform thorough network-level analyses, visualization of our association tables, and integration with other biological networks in the future.
Analysis of vaccine groups using VO
The community-based VO includes more than 4,000 vaccine-specific terms, namely, all licensed human and veterinary vaccines currently used in the United States. Logical axioms have been defined in the VO to represent the relations among vaccine terms . The Semantic MEDLINE analysis uses SNOMED terms to represent various vaccines. The VO has established automatic mapping between SNOMED vaccine terms and VO terms. On the basis of the mapping, we first extracted all vaccine terms from the Semantic MEDLINE and mapped to the VO. The ontology term retrieval tool OntoFox  was then applied to obtain the hierarchies of the total vaccines or subgroups of the vaccines identified in this study.
The overall network view
In total, 76 vaccines, annotated by the SNOMED CT term Vaccine (CUI: C0042210), were used to extract related vaccine-disease and vaccine-gene associations from the drug-disease and drug-gene association tables, respectively. In the vaccine-disease network, there were 1,038 nodes (104 vaccines and 934 diseases) and 1,693 vaccine-disease associations (Additional file 1). In the vaccine-gene network, there were 170 nodes (85 vaccines and 85 genes) (Additional file 2) and 94 vaccine-gene associations. One vaccine network was generated by the projection of the vaccine-disease bipartite network, consisting of 76 vaccines and 573 associations (Additional file 3). This vaccine network was then used to analyze the vaccine relationships. The derived vaccine-gene network was also investigated by the VO knowledge.
Analysis of vaccine network
Vaccine-vaccine association 1
Our study also identified many other diseases associated with different vaccines. For example, 5 vaccines (eg, pertussis vaccine) were found to be associated with various types of antimicrobial susceptibility, and 8 vaccines (eg, influenza vaccine) have been co-studied in patients with the asthma condition. Because of the relatively poor annotation of the vaccine data in the Semantic MEDLINE system, the vaccines identified in the semantic analysis were poorly classified. Our previous study  also confirmed that the vaccine annotations in VO are more granular than that in Semantic MEDLINE or MeSH. The incorporation of the VO in the study clearly classifies these vaccines, leading to better understanding of the result of the Semantic MEDLINE analysis.
Vaccine-vaccine association 2
This group of vaccines, including Q fever vaccine, parvovirus vaccine, and tick-borne encephalitis vaccine, is associated with the common disease delayed hypersensitivity. Delayed-type reactions may occur at days after vaccination and often raise serious safety concerns. Delayed hypersensitivity is not antibody mediated but rather is a type of cell-mediated response. The study of common vaccines and gene and pathway features related to the delayed reaction will help to reveal the cause of a delayed-type reaction and eventually prevent it. While these vaccines are developed against different bacterial or viral diseases, there may be similarities among the vaccines, such as common vaccine ingredients (eg, adjuvant) and a shared target in some common biological pathway in human. Identification of these common features may indicate a common cause of a delayed-type reaction.
Vaccine-vaccine association 3
This group of vaccines is associated with the common disease mumps. The vaccines in this group include mumps vaccine, measles, mumps, rubella, and varicella virus vaccine, and DTP-Haemophilus b conjugate vaccine (DTP-Hib). The first 2 vaccines protect against mumps. The DTP-Hib vaccine was compared with a mumps vaccine in a study .
Vaccine-vaccine association 4
This vaccine group consists of 7 vaccines (eg, Brucella abortus vaccine and bovine rhinotracheitis vaccine) with direct associations between them. They are all associated with the common term calf in the literature abstracts. Since calf disease is a synonym Scheuermann disease, these vaccines have all been linked to Scheuermann disease because of the ambiguity of the Natural Language Processing (NLP) process. This ambiguity can be improved by future advancement in the disambiguity capacity of the NLP tools.
In the gene-vaccine network, many vaccines also interact with multiple genes. Four vaccines (diphtheria toxoid vaccine, DTP vaccine, inactivated poliovirus vaccine, and influenza virus vaccine) were found to interact with at least 3 genes. According to the VO, diphtheria toxoid vaccine protects against infection by Corynebacterium diphtheriae. In addition to C diphtheriae, the DTP vaccine also protects against infection by Clostridium tenani and Bordetella pertussis. Both of these vaccines interact with CD40LG and TH1L. So it is likely that these 2 proteins specifically interact with the same C diphtheriae component in diphtheria toxoid vaccine, but not with the other components in the DTP vaccine.
Conclusions and future work
In this paper, we proposed a novel network-based approach to investigate vaccine relationships in the context of a vaccine network extracted from abstracts from the literature posted to PubMed. These investigations of vaccine-vaccine, vaccine-disease, and vaccine-gene networks demonstrated that such literature-based associations can be better analyzed using the VO and such a combinatorial analysis is able to reveal the association patterns and new knowledge. The identified vaccine-vaccine associations based on vaccine-disease distance analysis were consistent with their VO categories and often lead to the generation of new hypotheses. Our studies identified some novel vaccine-vaccine relationships by discovering a group of vaccines associated with some common diseases, as demonstrated in the heat map analysis in the Results section. Because information in the literature is incomplete, such vaccine-vaccine associations need further validation in independent databases or through future experimental studies. For example, while our analysis revealed associations between a group of vaccines and neurologic adverse events, the evidence of these associations, although reported by some PubMed abstracts, has not necessarily been commonly acknowledged . More analysis may be required for clarification. As such relationships are further validated by independent data resource such as Electronic Health Record (EHR), they can complement current relationships in VO and provide additional underlying targets for vaccine repositioning in the future.
Extensions of this work include the following: (1) integration of more comprehensive vaccine-disease association databases (e.g., the Vaccine Adverse Event Reporting System) to construct more complete vaccine-related networks; (2) generation of a vaccine-related gene network by extending analysis to the neighbor genes of vaccine-associated genes; (3) network-based investigation of the relationships among vaccines and other drugs using vaccine-drug associations; and (4) investigation of possible ways to improve the network by assigning metrics such as weights or confidence rates to different types of associations or associations from different sources.
This project was supported by the National Institutes of Health grants 5R01LM009959-02 to HL, and R01AI081062 to YH.
